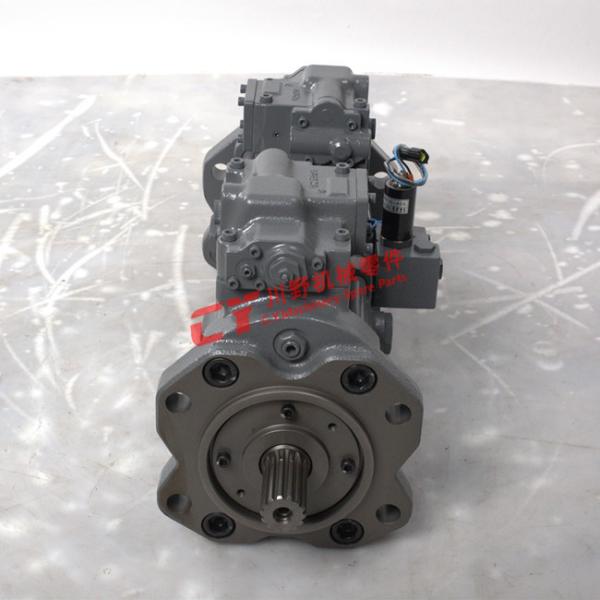

K3V112DTP 9N00 Excavator Hydraulic Main Pumps Assy For EC210 / 240

    Buy cheap K3V112DTP 9N00 Excavator Hydraulic Main Pumps Assy For EC210 / 240 from wholesalers

    Buy cheap K3V112DTP 9N00 Excavator Hydraulic Main Pumps Assy For EC210 / 240 from wholesalers
    • Buy cheap K3V112DTP 9N00 Excavator Hydraulic Main Pumps Assy For EC210 / 240 from wholesalers
    • Buy cheap K3V112DTP 9N00 Excavator Hydraulic Main Pumps Assy For EC210 / 240 from wholesalers
    • Buy cheap K3V112DTP 9N00 Excavator Hydraulic Main Pumps Assy For EC210 / 240 from wholesalers
    • Buy cheap K3V112DTP 9N00 Excavator Hydraulic Main Pumps Assy For EC210 / 240 from wholesalers
    • Buy cheap K3V112DTP 9N00 Excavator Hydraulic Main Pumps Assy For EC210 / 240 from wholesalers
    • Buy cheap K3V112DTP 9N00 Excavator Hydraulic Main Pumps Assy For EC210 / 240 from wholesalers

    K3V112DTP 9N00 Excavator Hydraulic Main Pumps Assy For EC210 / 240

    Ask Lasest Price
    Brand Name : Own brand
    Model Number : K3V112DTP
    Payment Terms : T/T , Western Union , RMB
    Supply Ability : 500 pcs each month
    Delivery Time : 1-7 Days for stock items, 10-25 days for production order
    • Product Details
    • Company Profile

    K3V112DTP 9N00 Excavator Hydraulic Main Pumps Assy For EC210 / 240

    K3V112DTP 9N00 Excavator Hydraulic Main pumps Assy for EC210/ 240
    Product Description



    Model NO.K3V112DTP-9N24-14T
    DescriptionHydraulic pump for EC210 EC240 Excavator
    Brand nameHandok
    ColorAs the photo
    Appliionexcavator
    Condition100% brand new
    Warranty1 Year
    Packingstandard packing(fiberboad carton/wooden case)or as customzied
    Payment termT/T,Alipay..etc.
    Shipment7days after getting the payment,but not for the customzied item
    RemarkAny more detailed information about the product,pls donot hestate to inquiry with us.Also welcime to visitour company or factory if you have free time.We will be appriciate for that. Thank you.


    List of spare parts

    #Part NoPart NameQty.
    SA 1142-00012Pump1
    1SA 8230-14650Piston2
    2VOE 14500003Piston9
    3VOE 14500002Seat9
    4SA 8230-28580Cylinder1
    5SA 8230-28560Block1
    6VOE 14500001Plate1
    7SA 8230-28590Cylinder1
    8SA 8230-28560Block1
    9VOE 14500000Plate1
    10SA 8230-09800Plate2
    11SA 8230-30540Plate1
    12VOE 14500012Bushing1
    13SA 7223-00450Check valve2
    14SA 7223-00500Seat1
    15SA 7223-00520Guard1
    16SA 9676-73200Ball1
    17SA 7223-00460Check valve2
    18SA 7223-00500Seat1
    19SA 7223-00540Guard1
    20SA 9676-73200Ball1
    21SA 8230-09020Valve1
    22SA 8230-09100Shaft1
    23SA 8230-09070Shaft1
    24SA 8230-09660Coupling1
    25SA 8230-26610Roller Bearing2
    26SA 8230-26700Needle Bearing2
    27SA 8230-14530Spacer4
    28SA 8230-09370Plate2
    29SA 8230-09680Bushing more2
    30SA 8230-09710Spring18
    31SA 8230-09670Spacer2
    32SA 8230-21920Plate2
    33SA 8230-08940Support2
    34SA 8230-09350Cover1
    35SA 8230-08930Body1
    36SA 8230-08980Valve assembly1
    37SA 8230-09690Bolt8
    38SA 9016-10804Bolt4
    39SA 9415-11021Plug3
    40SA 9415-11051Plug4
    41SA 7242-11040Plug21
    42SA 8230-09790Pin2
    43SA 8230-09320Pin1
    44SA 7223-00570Pin1
    45SA 8230-09250Piston2
    46SA 8230-09640Stop2
    47SA 8230-09650Stop2
    48SA 9511-22035O-ring2
    49SA 9511-22095O-ring1
    50SA 9511-22145O-ring4
    51SA 9511-12008O-ring16
    52SA 9511-12011O-ring8
    53SA 9511-12024O-ring4
    54SA 9511-12018O-ring2
    55SA 8230-26900Seal1
    56SA 9566-10180Ring2
    57SA 9566-20350Ring2
    58SA 8230-25620Nut2
    59SA 9111-12000Nut2
    60SA 8230-25980Ring2
    61SA 8230-26430Plate2
    62SA 7223-00660Spring Pin4
    63SA 8230-25450Eye Bolt2
    64SA 8230-26780Bolt2
    65SA 8230-09700Bolt2
    100SA 8148-13080Sealing Kit1


    K3V112DTP 9N00 Excavator Hydraulic Main Pumps Assy For EC210 / 240

    FAQ

    Q. Which countries have you exported?

    ASIA: Iraq, UAE, Turkey, Thailand, Malaysia, Indonesia, Vietnam, Bangladesh, Kuwait, Lebanon

    EUROPE: Russia, Kazakhstan, Greece, Norway, Ireland

    OCEANIA: Australia, Fiji, Kiribati, New Caledonia

    AMERICAS: Canada, Jamaica, Brazil, Peru, Chile,

    AFRICA: Angola, South Africa, Kenya, Tanzania, Zambia, Sudan, South Sudan, Egypt, Algeri, Nigeria


    Q: How can I get a quotation?
    A: A complete quotation based on the details as follows in your inquiry:
    1. Part No. 2.Engine model 3.Machinery model 4. Description and size

    Picture. 6.. Quantity 6. Other requirements, such as Packing, Shipping and so on.


    Q: 4. When can you deliver after sending deposit?
    It depends on your order quantity, if we have stock then need about 3~10 working days get it ready, if no stock we will start to produce when the deposite received. Usually it takes 15-60 days for different items.


    Q: How do you pack the goods?
    We have 20 years experience on export, finished products will be carefully handled by three steps:
    1: Wrapped with packing paper or plastic bag;
    2: HKT / FUP box or neutral box;
    3: Put in an appropriate carton box or wooden boxes and be fixed firmly.


    Q: How can I know the status of my order?
    We will keep you udpate the process of the preparation, to ensure all issues are resolved prior to the delivery.products pictures can be provided if required. We shall send out the goods immediately after confirmation and you will get the tracking information right away


    Q: How to guarantee your service?

    A. Strict inspection during production

    B. Strictly check the products before shipment to ensure our packaging in good condition

    C. Track and receive feedback from customer regularly


    Q: What will you do for quality complaint ?

    A. We will respond to customer within 24 hours.

    B. Our QC will retest the same stock item, if confirmed it is quality problem, we will make corresponding compensation
