02136928 02136928 02929338 Excavator Crankshaft For Deutz F3L912
Engine
| Product name: | Excavator Crankshaft |
| Engine model: | Deutz F3L912 |
| Part Number: | 02136928 02136928 02929338 |
| Hardeness: | ≥48HRC |
| Heat Treatment: | Nitriding |
| Tensile Strength : | ＞800mpa |
| Condition: | Brandnew |
| MOQ: | 1 pc |
| H.S. Code: | 8409919990 |
| Gross Weight: | 40 kgs |
| Packing sizes: | 520*150*150 |
| Quality: | Casting Alloy or Forged Steel |
| Shipping: | By sea,by exprss |

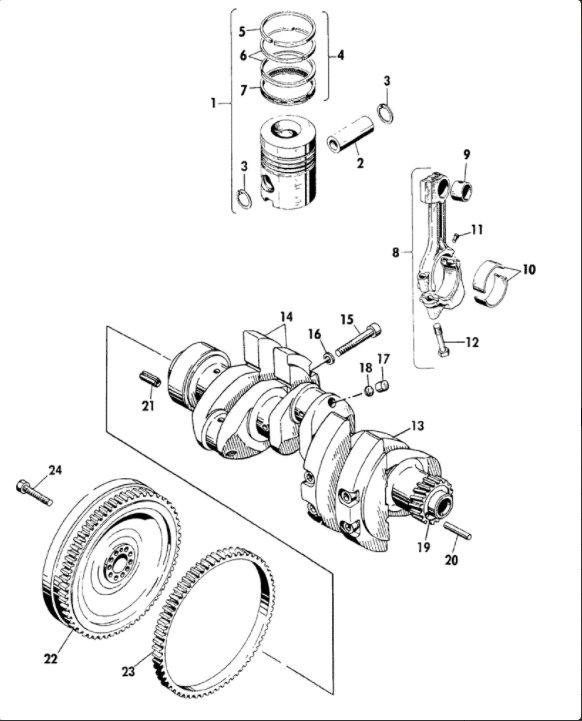

Parts on group (F3L912) - DEUTZ 3 CYL DIESEL ENGINE (1/10-12/13):
| Pos. | Part No | Qty | Parts name | Comments |
| 1. | 213
6952 | [3] | Piston Assembly, Includes Ref. 2 thru 7, Standard, 100 mm. | |
| 1. | 213
6958 | [3] | Piston Assembly, Includes Ref. 2 thru 7, 100.5 mm. | |
| 1. | 223
1469 | [3] | Piston Assembly, Includes Ref. 2 thru 7, 101 mm. | |
| 2. | 337
1660 | [3] | Pin, Piston | |
| 3. | 110
7821 | [6] | Ring, Snap | |
| 4. | 213
3809 | [3] | Ring Set, Standard, 100 mm. | |
| 4. | 223
0292 | [3] | Ring Set, 100.5 mm. | |
| 4. | 223
1470 | [3] | Ring Set, 101 mm. | |
| 5. | 116
2303 | [3] | Ring, Trapezoidal, Standard, 100 mm. | |
| 5. | 116
2469 | [3] | Ring, Trapezoidal, 100.5 mm. | |
| 5. | 117
2312 | [3] | Ring, Trapezoidal, 101 mm. | |
| 6. | 116
1084 | [6] | Ring, Tapered, Standard, 100 mm. | |
| 6. | 116
2104 | [6] | Ring, Tapered, 100.5 mm. | |
| 6. | 117
2311 | [6] | Ring, Tapered, 101 mm. | |
| 7. | 116
1089 | [3] | Ring, Oil Control, Standard, 100 mm. | |
| 7. | 116
2103 | [3] | Ring, Oil Control, 100.5 mm. | |
| 7. | 117
2313 | [3] | Ring, Oil Control, 101 mm. | |
| 8. | 213
6526 | [3] | Connecting Rod Assembly, Includes Ref. 9, 11 and 12 | |
| 9. | 337
1612 | [3] | Bushing | |
| 10. | 213
7750 | [3] | Bearing Liner Set, (2 Halves) Standard, 60 mm. | |
| 10. | 213
7754 | [3] | Bearing Liner Set, (2 Halves) 59.75 mm. | |
| 10. | 213
7758 | [3] | Bearing Liner Set, (2 Halves) 59.50 mm. | |
| 10. | 213
7762 | [3] | Bearing Liner Set, (2 Halves) 59.25 mm. | |
| 10. | 213
7766 | [3] | Bearing Liner Set, (2 Halves) 59 mm. | |
| 10. | 213
7770 | [3] | Bearing Liner Set, (2 Halves) 58.75 mm. | |
| 10. | 213
7774 | [3] | Bearing Liner Set, (2 Halves) 58.50 mm. | |
| 11. | 213
6101 | [3] | Pin | |
| 12. | 213
3871 | [6] | Bolt, Special | |
| 13. | 213
6928 | [1] | Crankshaft Assembly, Includes Ref. 14 thru 21 | |
| 14. | 223
0134 | [4] | Counterweight | |
| 15. | 112
4778 | [8] | Screw, Cap, HH, 12 mm. x 60 mm. | |
| 16. | 121
6119 | [8] | Washer | |
| 17. | 117
0580 | [3] | Plug | |
| 18. | 116
7010 | [3] | Disc | |
| 19. | 336
2737 | [1] | Gear | |
| 20. | 110
5166 | [1] | Pin, Dowel, 6 mm. x 45 mm. | |
| 21. | 111
5464 | [1] | Pin, Roll, 8 mm. x 18 mm. | |
| 22. | 216
0783 | [1] | Flywheel Assembly | |
| 23. | 213
1081 | [1] | Gear, Ring | |
| 24. | 717050 | [10] | SCREW | BEL Tension, Special, M10 x 1 x 45 |
